Mercedes-Benz NTG5 Camera and Video Interface 907070300

Features

• Adds one reversing-camera video input and two auxiliary video inputs; front-camera input is optional.

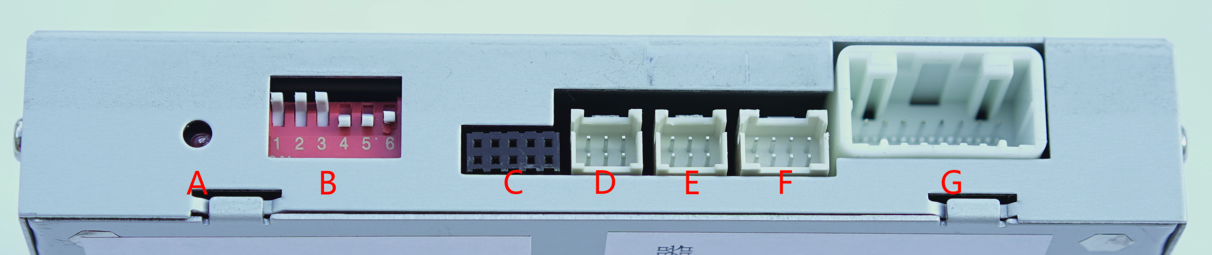

• DIP-switch selection for the original camera, an added camera, or a wired-switching 360 camera system.
• The source manual describes automatic reverse switching and trajectory/radar overlay for the matching configuration.
• Uses the original BACK control to switch added video functions.

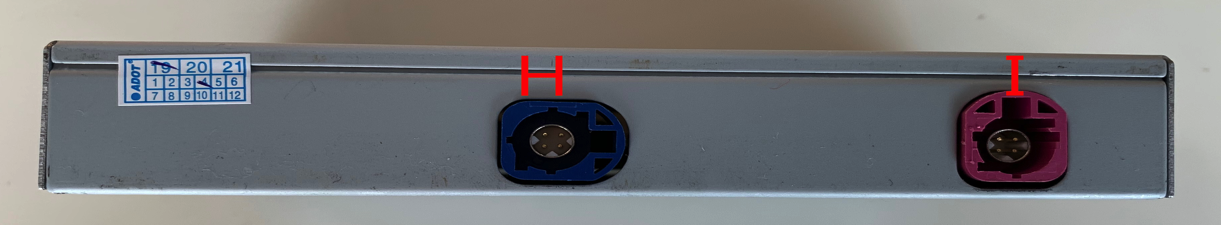

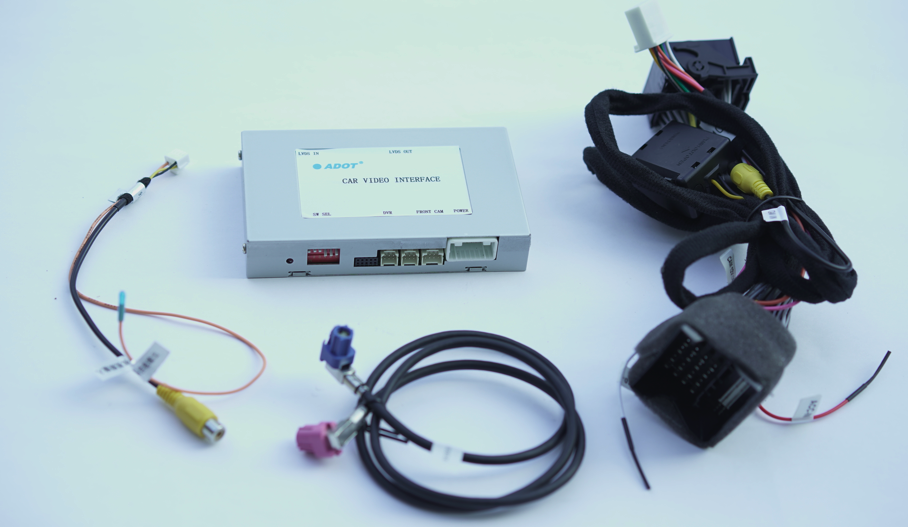

• Matching vehicle connectors and LVDS harnesses are shown in the supplied product photographs.

Vehicle and system scope

The supplied manual identifies 2017 Mercedes-Benz C-Class vehicles with NTG5. Match the head unit, screen version and DIP-switch settings before installation; other NTG versions are not implied.

Technical reference

Measurement note

Weight and dimensions are reproduced from the supplied manual; its measurement scope is not specified.

Components listed in the manual

Installation and operation

• Professional installation is required. The module is not waterproof and must be protected from moisture.

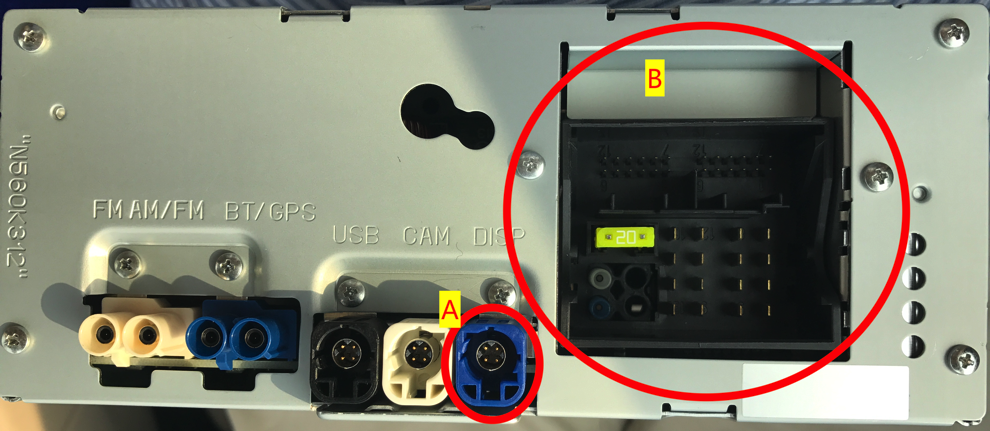

• The reference photographs identify the original head-unit power connector and blue LVDS connection. Use the matched harnesses; do not infer pin assignments from a different vehicle.
• Hold the original BACK control for about three seconds to switch added video functions, as described in the manual.
• If a front camera is not installed, disable that function; the source manual warns of a blue/no-image screen when a missing input is triggered.
• Before handover, test the original interface, reversing image and each enabled auxiliary input.
