Buick Encore GX 360 Camera Interface 907014600
VGA/CVBS surround-view integration for the Encore GX versions identified in the supplied manual.
Email enquiryConfirm vehicle compatibility before purchase.
Product details
Features
- DIP-switch selection of VGA or CVBS surround-view/reversing input.
- The supplied manual lists one reversing input, one auxiliary video input and an optional front-camera input.
- Touch operation of the surround-view system requires a compatible surround-view unit.
- Original HOME-button switching is described for auxiliary video functions.
- The VGA connection is specified as a 14-pin interface with serial communication and matched protocol.
Vehicle and system scope
The supplied installation manual identifies the 2020 Buick Encore GX Flagship and AWD Flagship versions. Confirm the market and original system before ordering. The older catalogue has a different year label, so it is not used to widen this fitment.
Technical reference
| Product | 907014600 |
|---|---|
| Operating / control voltage | DC 8-18 V |
| Vehicle supply | 12 V, negative ground |
| Power stated in manual | 3 W |
| Operating temperature | -10 to 70 C |
| Storage temperature | -20 to 85 C |
| VGA reference | 14-pin interface; serial communication; protocol match required |
| Weight stated in manual | 430 g |
| Dimensions stated in manual | 230 x 160 x 50 mm |
Measurement note
The source manual does not state the measurement scope for its weight and dimensions.
Components listed in the manual
| Component | Part number |
|---|---|
| Interface module | 907014601 |
| LVDS cable | 910010163 |
| Power harness | 910010164 |
Installation and verification

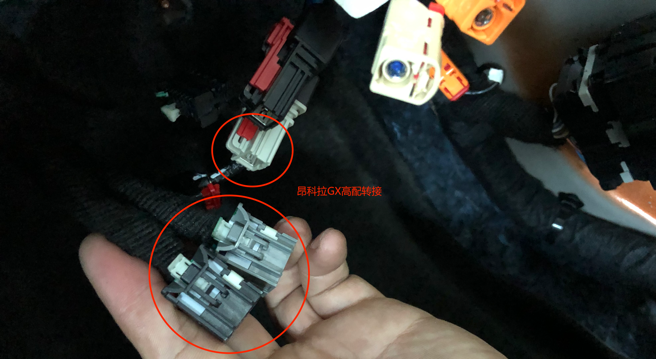

- Installation is described at the original radio module on the right side of the front passenger footwell. Confirm the actual connectors against the supplied photograph.
- Select the required camera mode and verify the surround-view output and serial protocol before connecting the interface.
- The module is not waterproof and requires professional installation.
- Test the original display, reverse switching, 360 image and enabled video inputs before final assembly.

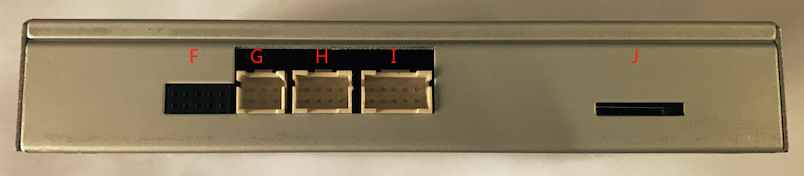

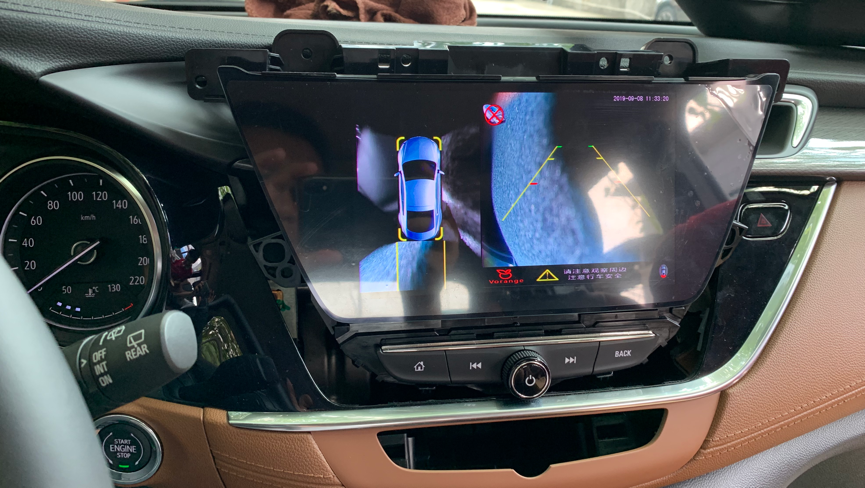

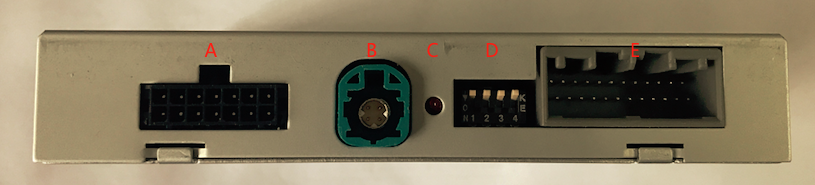

Installed display and connections
